EVA/TPU Shoe Material Foam Thick Plate Production Line

Introduction:

EVA and TPU foam materials have good flexibility and elasticity, and are widely used in the field of...

24H Hotline

0519-87338909 / 18851219256

Introduction

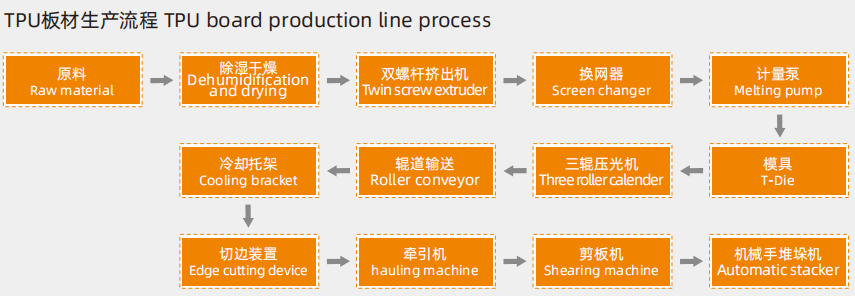

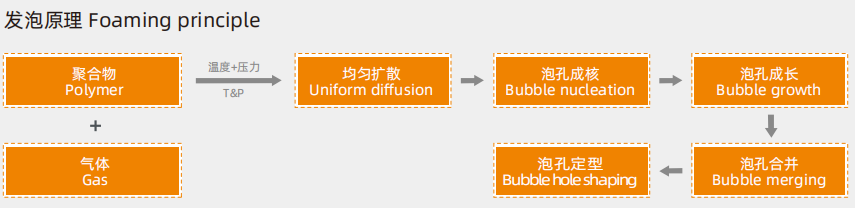

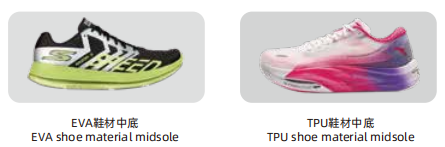

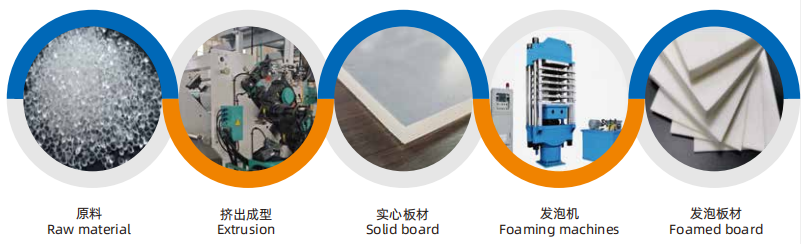

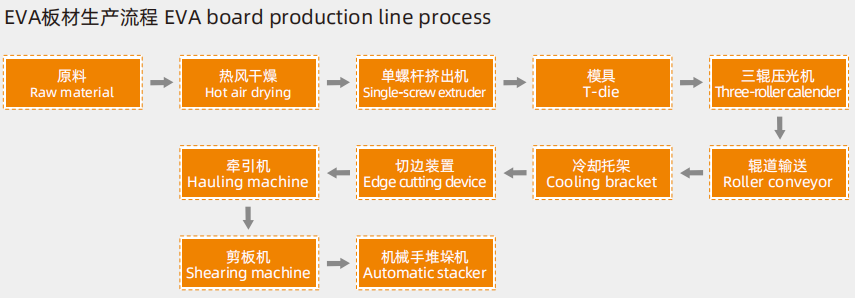

EVA and TPU foam materials have good flexibility and elasticity, and are widely used in the field of shoe  materials. This production line produces EVA or TPU solid board through continuous extrusion, and then uses supercritical foaming equipment with carbon dioxide or nitrogen to produce EVA or TPU foam board. Compared to traditional small foam or injection molding foam, it has improved production efficiency. JWELL Company's specialized and  intelligent technical strength meets the customized needs of different customers.

42-1-1

42-0-1


42-2-1

42-2-2

42-2-3

Parameter

原料 Raw material挤出机 Extrusion产能 Capacity厚度 Thickness宽度 Width
EVA单螺杆挤出 single screw extruder100-250KG/H5-20mm500-800mm
TPU双螺杆挤出 twin screw extruder100-300KG/H5-20mm500-800mm
